Player Thumbnail Example
Introduction
Player thumbnails are small images representing players in a game. They are commonly used in leaderboards, chat, and social features to help players identify each other.
This guide covers how to:
- Create a player thumbnail using
UIUserThumbnailin UXML. - Style it with USS.
- Handle interactions dynamically using Lua.
Creating a Player Thumbnail
In this example, we define a player thumbnail in UXML, apply styles in USS, and interact with it in Lua.
ThumbnailExample.uxml
<?xml version="1.0" encoding="utf-8"?>
<UXML
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns="UnityEngine.UIElements"
xmlns:hr="Highrise.UI"
xmlns:editor="UnityEditor.UIElements"
xsi:noNamespaceSchemaLocation="../../UIElementsSchema/UIElements.xsd"
>
<hr:UILuaView class="thumbnail-example">
<VisualElement class="container">
<hr:UIUserThumbnail class="player-thumbnail" name="_playerThumbnail" online-indicator="false"/>
<Label class="player-name" name="_playerName" text="Player Name"/>
</VisualElement>
</hr:UILuaView>
</UXML>
UILuaViewwraps the UI component.VisualElement(class:container) holds the thumbnail and player name.UIUserThumbnail(name:_playerThumbnail) is the player thumbnail.Label(name:_playerName) displays the player's name.
Styling the Player Thumbnail
ThumbnailExample.uss
.thumbnail-example {
display: flex; /* Uses flexbox for layout */
position: absolute; /* Positions element absolutely within its parent */
width: 100%; /* Takes up full width of parent container */
height: 100%; /* Takes up full height of parent container */
justify-content: center; /* Centers children horizontally */
align-items: center; /* Centers children vertically */
align-self: center; /* Centers the entire element within its parent */
}
.container {
display: flex; /* Uses flexbox for layout */
width: 150px; /* Sets fixed width of 400 pixels */
height: 150px; /* Sets fixed height of 100 pixels */
justify-content: center; /* Centers children horizontally */
align-items: center; /* Centers children vertically */
flex-direction: column; /* Arranges children in a vertical row */
background-color: #333; /* Sets dark gray background color */
border-radius: 10px; /* Rounds corners with 10px radius */
padding: 10px; /* Adds 10px internal spacing */
font-size: 20px; /* Sets text size to 20 pixels */
color: white; /* Sets text color to white */
-unity-font-definition: var(--font-bold); /* Uses predefined bold font variable */
-unity-text-align: middle-center; /* Aligns text to the center */
}
/* Must call out the specific class to style the thumbnail */
.container .player-thumbnail {
width: 70px; /* Sets thumbnail width */
height: 70px; /* Sets thumbnail height */
}
/* built-in classes */
.player-thumbnail .user-thumbnail__image-container {
/* For extra styling of the thumbnail image */
}
.containerdefines the thumbnail wrapper with a background, padding, and rounded corners..player-thumbnailsets the size of the player thumbnail..user-thumbnail__image-containerallows further styling of the thumbnail image.
Handling Interactions in Lua
ThumbnailExample.lua
--!Type(UI)
--!Bind
local _playerThumbnail : UIUserThumbnail = nil
--!Bind
local _playerName : Label = nil
-- Initialize the player thumbnail
function Initialize()
_playerThumbnail:Load(client.localPlayer) -- Load local player image
_playerName.text = client.localPlayer.name -- Set player name
end
-- Dynamically create a player thumbnail
function CreateThumbnail(player_id: string)
local newThumbnail = UIUserThumbnail.new()
newThumbnail:AddToClassList("player-thumbnail")
newThumbnail:Load(player_id)
newThumbnail.showOnlineIndicator = false -- Hide/Show online indicator
return newThumbnail
end
-- Run initialization when UI is enabled
function self:OnEnable()
Initialize()
end
Initialize()loads the local player's thumbnail and name.CreateThumbnail(player_id)generates a new player thumbnail dynamically.

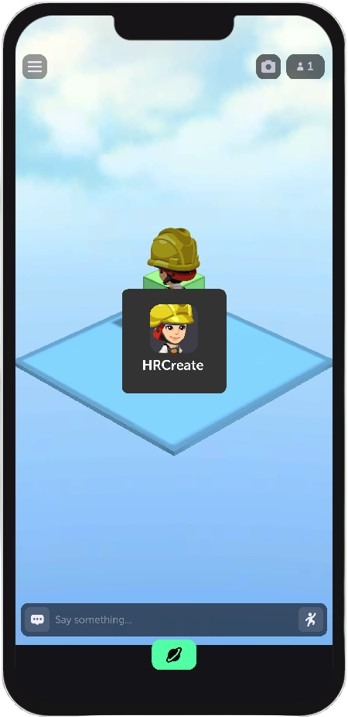

Visual Example
Conclusion
This guide covered:
- Creating a player thumbnail using
UIUserThumbnail. - Styling it with USS for a clean UI.
- Handling interactions dynamically in Lua.
Now you can create and customize player thumbnails in your game UI!
